SMTCL Heavy CNC Lathe 5000mm HTC125500 Horizontal Flat Bed CNC Heavy Turning Machine

Name: SMTCL Heavy CNC Lathe 5000mm HTC125500 Horizontal Flat Bed CNC Heavy Turning Machine
Brand: SMTCL
Price: 1 USD

China SMTCL Heavy CNC Lathe 5000mm HTC125500 Horizontal Flat Bed CNC Heavy Turning Machine wholesale

Brand Name : SMTCL

Model Number : HTC125500

Certification : CE ISO

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Supply Ability : 50 Sets per Month

Delivery Time : 30 days

Packaging Details : Wooden package standard for sea shipping

Brand : SMTCL

Type : HTC125500

Product name : CNC Horizontal lathe

Maximum swing diameter over bed : 1250mm

Maximum cutting length : 5000mm

Maximum cutting diameter : 1250mm

X axis travel : 650mm

Z axis travel : 5000mm

Tool post type : Vertical 4-position

Contact Now

SMTCL Heavy CNC Lathe 5000mm HTC125500 Horizontal Flat Bed CNC Heavy Turning Machine

Product Description:

Shenyang Machine Tool HTC125500 is a numerically controlled horizontal lathe with excellent performance. Its maximum swing diameter reaches 1.25 meters, providing multiple specification options. The maximum processing length can reach 8 meters, meeting the processing needs of large workpieces. The standard load-bearing capacity of the spindle box is 5 tons, and for heavy-duty models, it can reach 8 tons. The high load-bearing capacity ensures processing stability. It adopts a flat bed and mountain-flat guideway structure and is equipped with auxiliary guideway supports, greatly enhancing rigidity and being suitable for heavy cutting. There are abundant optional devices such as B-type center rest, heavy-duty four-position tool holder, multi-specification horizontal tool post, and small spindle tailstock, etc., which can be flexibly configured according to the processing needs of parts. This machine tool is widely used in multiple industries such as petroleum, valves, and power. With its characteristics of high rigidity, large diameter, and high load-bearing capacity, as well as precise processing accuracy and high processing efficiency, it provides strong support for enterprise production and is an ideal choice for processing large workpieces, helping enterprises improve production levels and competitiveness.

Product Features:

SMTCL Heavy CNC Lathe 5000mm HTC125500 Horizontal Flat Bed CNC Heavy Turning Machine

headstock:

Selection of imported precision spindle bearings, high precision fire grinding gear, spindle hydraulic shift Chuck: Selection of domestic well-known brands, clamping force, clamping reliable

Z-axis drive:

SIEMENS/FANUC original servo motor, screw drive for machine tools with less than 5m stroke, rack drive for machine tools with 6m and above

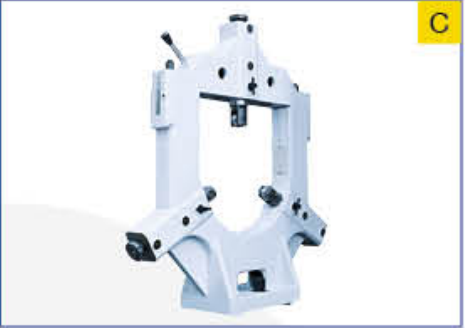

Steady rest:

Various specifications closed center frame (can be equipped with rollers)

Tool rest:

Domestic vertical four-station electric tool holder, can be selected with other vertical and horizontal tool holder, high positioning accuracy, strong rigidity, high reliability

Bed saddle, skateboard:

Casting bed saddle, skateboard, reasonable internal rib layout, high precision ball screw or rack and pinion, high precision, accurate transmission

Control console:

Siemens servo system, to achieve high-speed, high-precision, high-stability servo control, optional FANUC system

Tailstock:

Mechanical tail seat is divided into upper and lower body structure. Standard mechanical tailstock

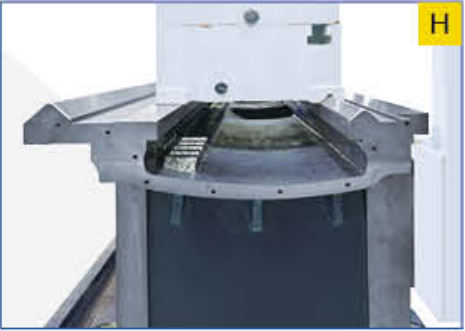

Body:

Casting bed with reasonable internal rib layout and auxiliary guide rail, with high rigidity, strong bearing capacity, good stability and so on. (6m and above specifications of the bed with a long section splicing form)

SMTCL Heavy CNC Lathe 5000mm HTC125500 Horizontal Flat Bed CNC Heavy Turning Machine

Industry application:

SMTCL Heavy CNC Lathe 5000mm HTC125500 Horizontal Flat Bed CNC Heavy Turning Machine

Product Paramenters:

Items	Unit	HTC 125500
Maximum swing diameter over bed	mm	1250
Maximum workpiece holding length (distance between centers)	mm	5100
Maximum cutting length	mm	5000
Maximum cutting diameter	mm	1250
Maximum swing diameter over cross slide	mm	850
Spindle nose type and code		A2-15
Spindle front end bore taper		Metric 140
Spindle bore diameter	mm	130
Hydraulic variable speed headstock
Spindle speed range	r/min	5-500
Maximum output torque of spindle	Nm	7500
Spindle speed steps		Hydraulicly 3steps, infinitely variable speeds at each step
Power of main motor	kW	22
Chuck
Diameter/type of chuck	mm	1000/manual four-claw
X-axis rapid traverse speed	m/min	6
Z-axis rapid traverse speed	m/min	5
X-axis travel	mm	650
Z-axis travel	mm	5000
Mechanical tailstock
Tailstock sleeve diameter	mm	160
Tailstock sleeve travel	mm	300
Tailstock sleeve taper		Mohs 6#
Tool post type		Vertical 4-position
Tool size	mm	40*40
Maximum load capacity
Disc workpieces	kg	1000
Shaft workpieces	kg	5000
Machining accuracy		IT6-IT7
Roundness of workpiece machined	mm	0.005
Consistency of machining diameter	mm	0.025/300
Planeness of workpiece machined	mm	0.02/300
Surface roughness of workpiece machined
Cylindrical surface		Ra l.6μm
Circular cambered surface Conical surface		Ra 3.2μm
Positioning accuracy
X-axis	mm	0.014
Z-axis	mm	0.05
Repeated positioning accuracy
X-axis	mm	0.006
Z-axis	mm	0.016
Center height
From bed	mm	625
From ground surface	mm	1275
Overall dimension (L* W * H)	mm	850027252450
Standard configuration: 1. CNC control system: Siemens 828D 2.Domestic 22kW frequency conversion main motor 3. Imported high-precision spindle bearings 4. Manual tail seat 5. Vertical four-station electric tool holder 6. Imported brand lead screw 7. φ1000 manual four-jaw chuck 8. Two axis automatic lubrication 9. Cooling device 10.The floor mat iron (technical foot hole configuration)	Selective configuration: 1. CNC system FANUC(two-axis motor with the system configuration) 2. Other specifications three or four jaw chuck 3. Heidenhain/Fager grating ruler 4. Axle parts bearing capacity 8 tons 5. Various specifications steady rest and roller 6. Siemens/FANUC main motor 7. Other specifications power tool holder 8. Semi-closed protection 9. Chain plate chip extractor 10. Various specifications boring tool base 11. Small spindle tailstock 12. Electric tailstock
